A Blown Interstate? Why not?

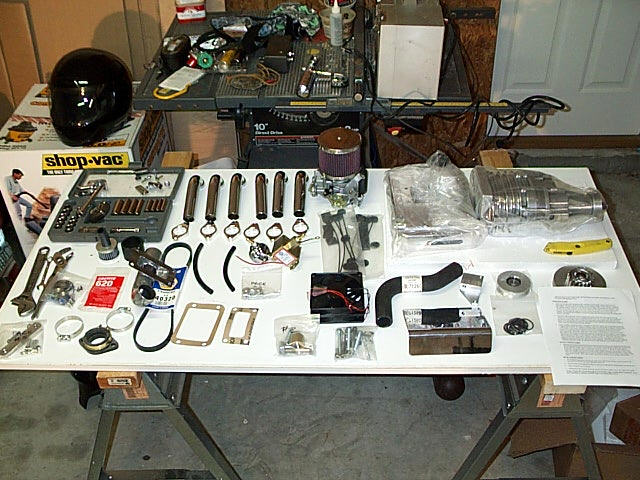

Parts is parts. Here's what you get in the kit.

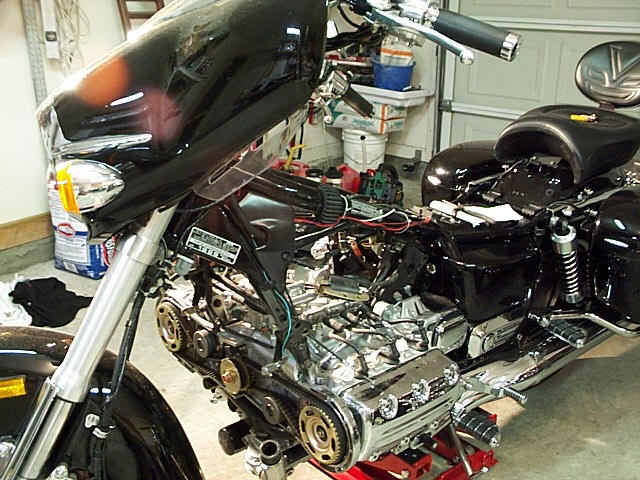

My naked lady, She's not very purty undressed. this is the "before" picture.

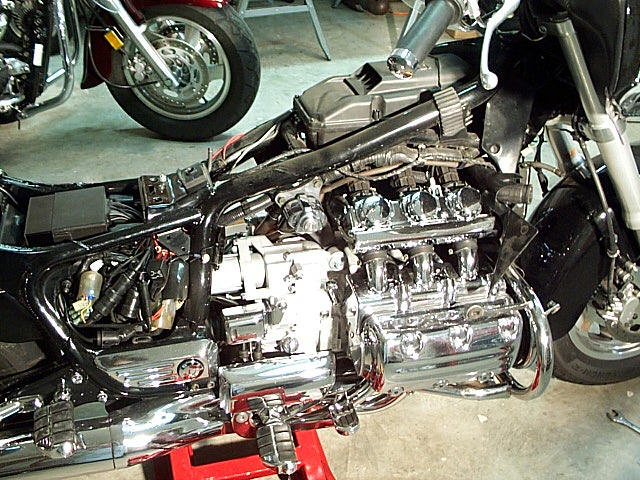

Side view of the soon to be removed carbs.



Stripped naked!

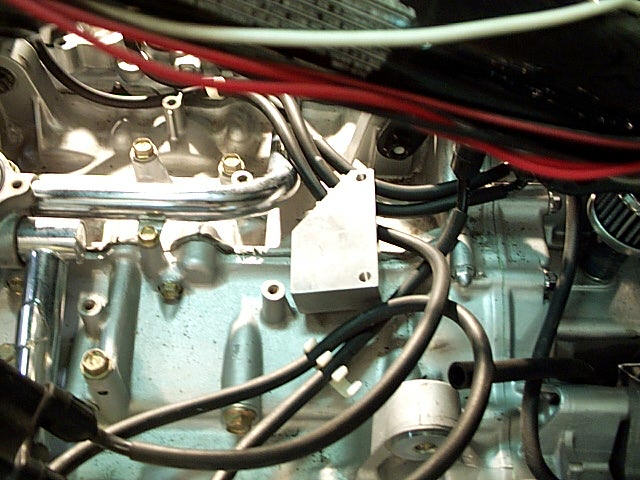

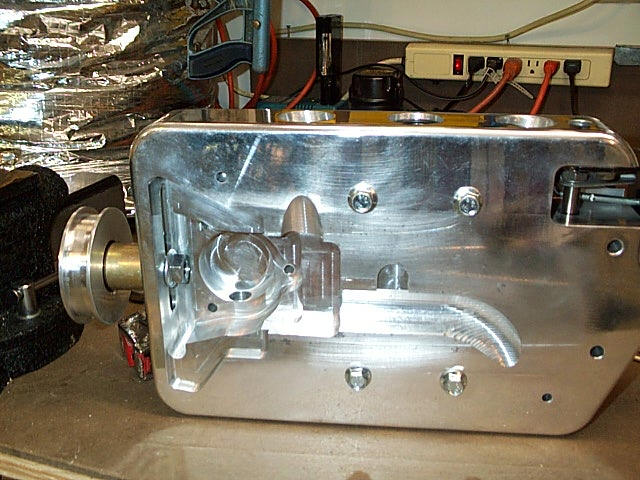

The bottom of the manifold

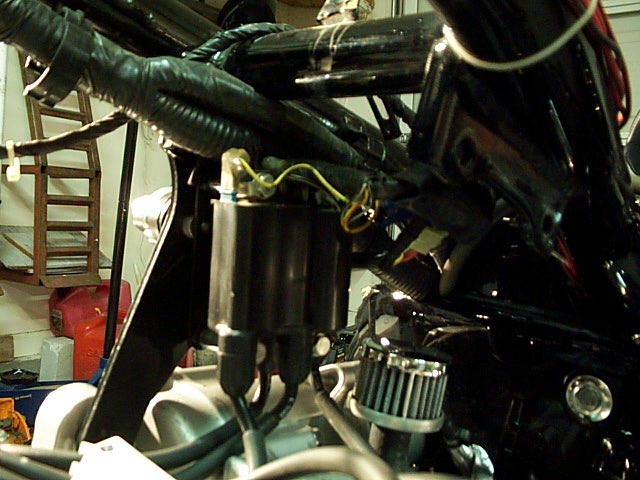

Relocating the coils was by far the most difficult task


Another relocated coil shot

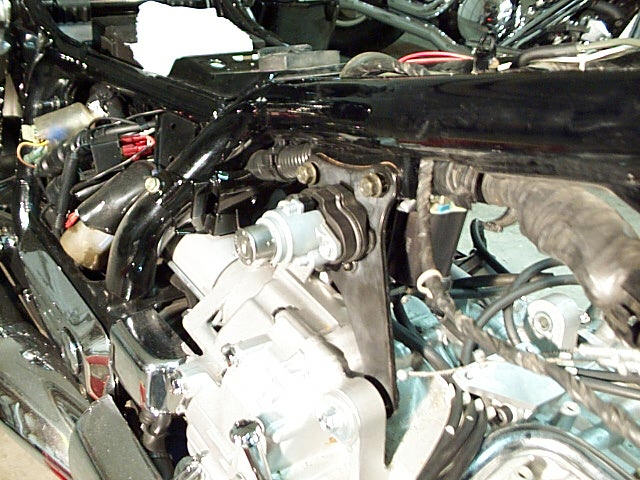

This is how the back mount is attached, not that you'd find this in the instructions.


Carb installed

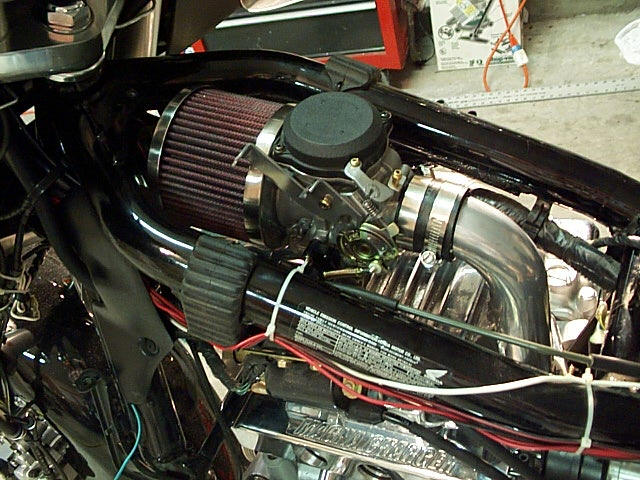

Side view of carb


I had to bend a "dog leg" on the cable mount to get the cables to line up to my expectations.

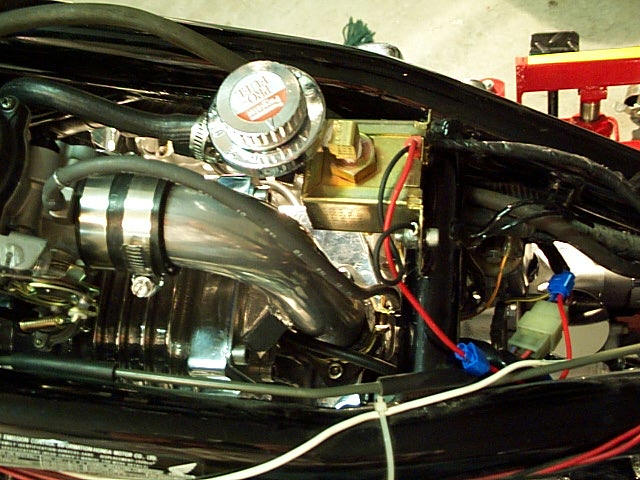

Fuel pump installed

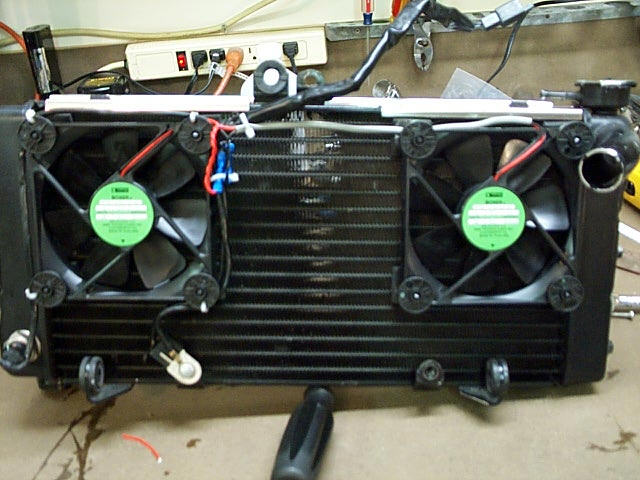

The dual fans are mounted

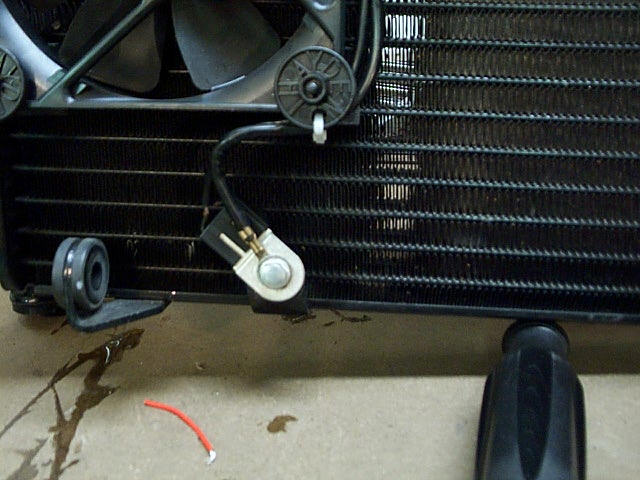

On an Interstate this little device is used to cut the fan noise from the radio, it must go back in.

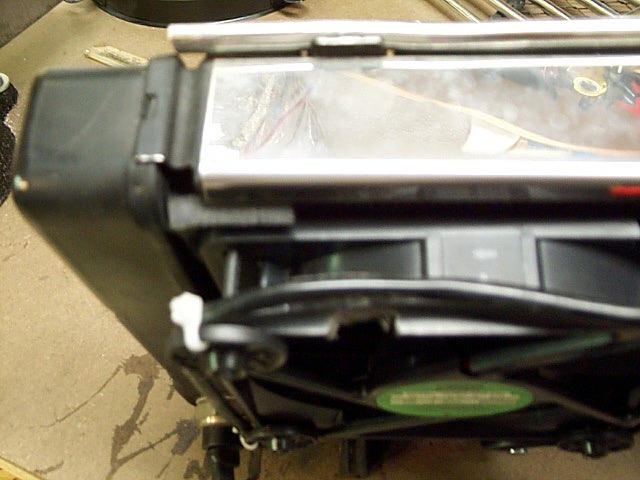

Fan install

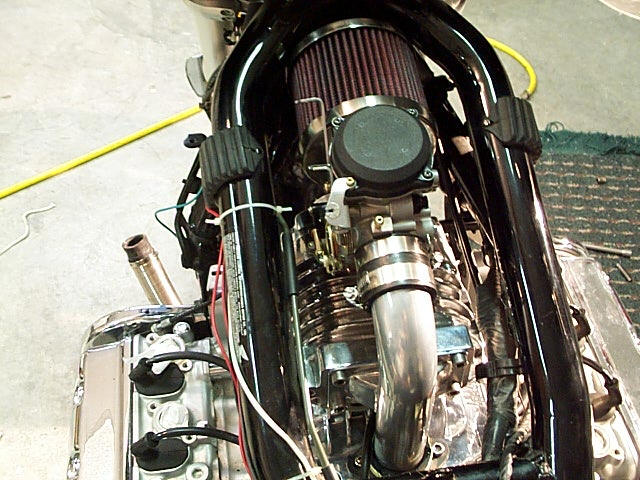

 Well, the blower is in.

I had to bend a "dog leg" into the throttle cable mount so the cables would line up right, I ran the adjuster through it.

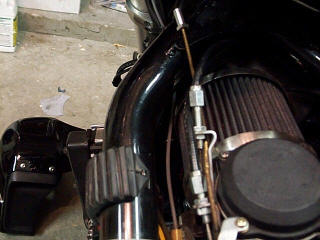

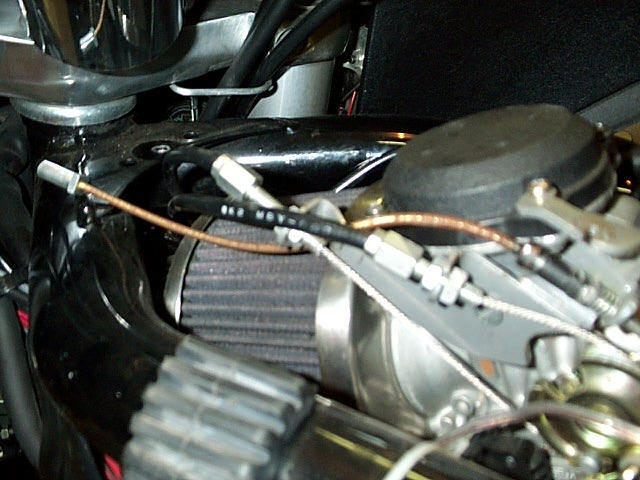

For those of us that feel the need for remote idle adjustment, I used a GM carb adjusting tool, I soldered it to the idle screw and ran it out under the front of the tank.



The finished product, Cool, Eh!




So you want a SuperCharger? Here is the link to Lamonster!

The guy that started it all.
