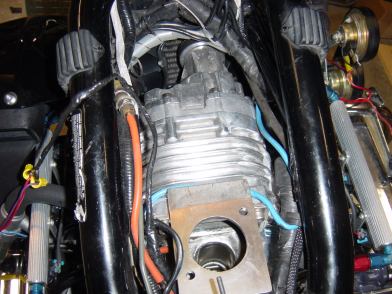

Before
The previous setup had a huge air cleaner, but it sucked hot air from under the tank. REALLY HOT AIR. When the fans came on it basicly blew 210 degree air over the air cleaner. |
|
|

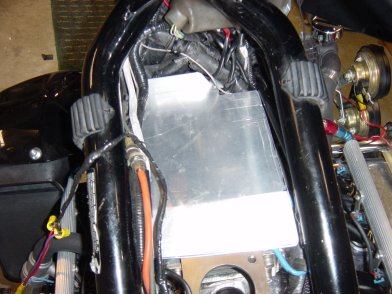

After
So, I decided that I could block off the bottom of the frame and make a "compartment" to isolate the aircleaner from the hot air. |
|
|

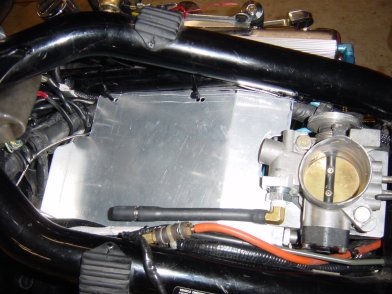

Throttle body installed
Test fit the throttle body, and secured the aluminum plate to the frame. |
|
|

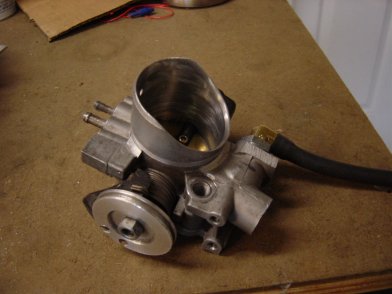

TB mod
I also took some time to shape the entrance of the throttle body to fit the rubber elbow better. |
|
|

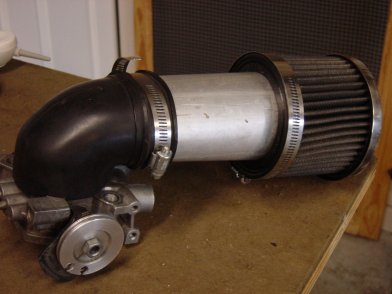

Air cleaner
I extended the tube on the air cleaner and put a smaller filter on it, so it would be closer to the openings in the front of the frame. I'm going to get a second air filter the same size and stack the two of them. But for now this should do. |
|
|

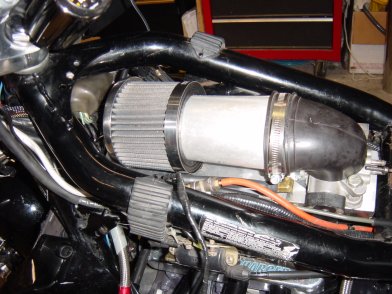

Completed unit
Tucks up nice. And it really cut down on the heat. |
|
|
